ASUS P5N7A-VM

From LinuxMCE
Jump to: navigation, search
Version Status Date Updated Updated By
710 According to category, Works with caveats 11th May 2010 Wierdbeard65
810 According to category, Works without caveats 11th May 2010 Wierdbeard65
1004 Unknown N/A N/A
1204 Unknown N/A N/A
Usage Information
Back
Top

Tested by: Totallymaxed

For 0710: No problems with this board - installed cleanly as an MD on a Linuxmce-710 Core after adding support for the RT8168 Nic to allow this board to pxe boot as an MD; See here for the steps needed to do this Realtek 8168

For 0810: No further steps needed.

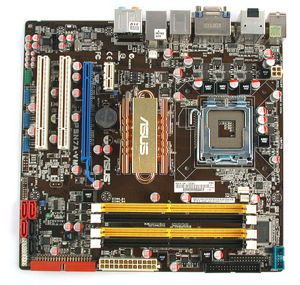

  • Motherboard: ASUS P5N7A-VM
  • CPU: Intel Core2 Socket 775
  • RAM: 2G
  • GPU Onboard: nVidia 9300 [GeForce 9300]

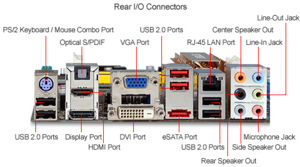

  • DVI, HDMI & VGA all tested at 720p & 1080p (setup from AVwizard)
  • S/pdif optical, analog 7.1 & Stereo out working (setup from AVwizard)
  • Run UI2 + Overlay & with alpha blending
